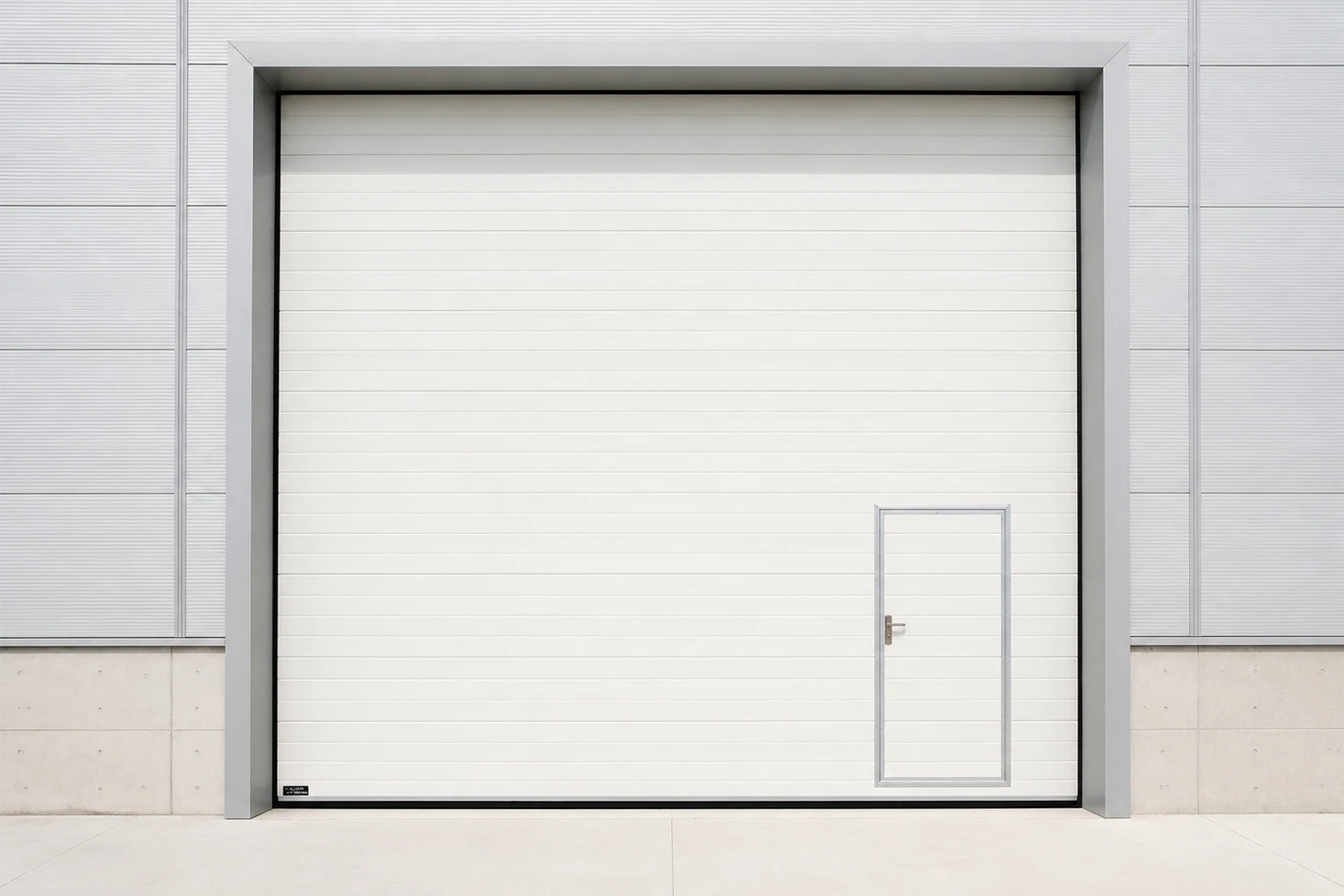

Industrial Polyurethane Insulated Sectional Doors: Technical Specs for Cold Storage Projects
For cold chain logistics facilities, the thermal performance of industrial doors directly dictates refrigeration energy consumption and operational costs. This article provides an engineering-focused analysis of heavy-duty polyurethane (PU) insulated sectional doors. We examine how 75mm thermal break panels meet ANSI/DASMA 105 standards and evaluate the performance of comprehensive sealing systems under extreme temperature differentials. By presenting hard data and compliance metrics, we aim to equip factory owners and builders with reliable criteria for supply chain decisions.
Thermal Performance of PU Sandwich Panels

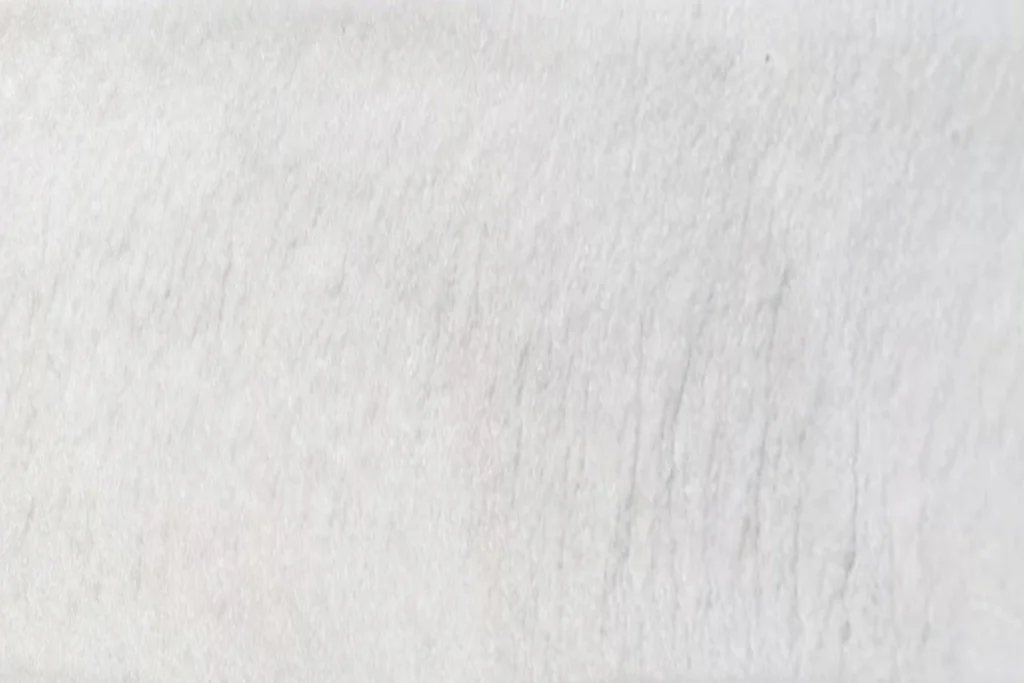

In cold storage environments, standard commercial doors fail due to thermal bridging, leading to condensation and ice buildup. Industrial-grade solutions require specialized PU sandwich panels. ABX utilizes CFC-free polyurethane foam injected at a high density of ≥45 kg/m³, achieving a closed-cell rate exceeding 95%. This structural density prevents moisture absorption and maintains long-term structural integrity under constant thermal stress.
Thermal Break Technology and R-Value Verification
To comply with the stringent air infiltration and thermal transmittance requirements of ANSI/DASMA 105, panel thickness alone is insufficient. ABX’s 75mm cold storage doors incorporate a physical thermal break that separates the interior and exterior steel skins. This design halts conductive heat transfer, delivering a thermal conductivity of 0.92W/(m2k) and an R-value up to 17. This directly translates to reduced workload on facility HVAC and refrigeration units.
Engineering for High-Frequency Operations
Cold storage loading docks experience relentless traffic. The hardware supporting these heavy-duty doors must be specified for high-cycle environments. ABX equips its commercial overhead doors with shot-blasted, electrophoretic-treated high-cycle springs rated for 25,000 to 30,000 operations. The track systems utilize 2.0mm to 2.5mm thick galvanized steel, bolted rather than welded, to facilitate rapid component replacement without hot work permits.
Sealing Systems and Anti-Icing Mechanisms
Air leakage at the perimeter destroys energy efficiency. Our industrial doors feature a multi-point EPDM sealing system. For freezing environments, optional heated guides prevent the bottom weatherstripping from freezing to the floor, ensuring uninterrupted automatic operation and preventing motor overload.
Supplier Qualifications and Lifecycle Maintenance
Procurement for large-scale projects requires a manufacturer with proven capacity and certified quality management. ABX operates a 36,000 sqm facility with ISO9001, ISO14001, and CE certifications. Furthermore, our proprietary QR code system assigns a unique ID to every door, linking directly to its specific Bill of Materials (BOM) for instant maintenance requests.
| Technical Parameter | ABX Cold Storage Specification | Engineering Benefit |
|---|---|---|
| Panel Construction | 75mm PU Sandwich Panel with Thermal Break | Prevents condensation and icing; R-value up to 17. |
| Hardware Lifecycle | High-Cycle Springs (25,000 – 30,000 cycles) | Reduces replacement frequency in high-traffic docks. |
| Compliance | ANSI/DASMA 105, CE, ISO9001 | Ensures facility passes strict energy and safety audits. |
Actionable Next Step: Ready to specify ABX insulated sectional garage doors for your next cold storage project? Contact our engineering team today to request custom CAD drawings, thermal performance reports, and wholesale project pricing.
