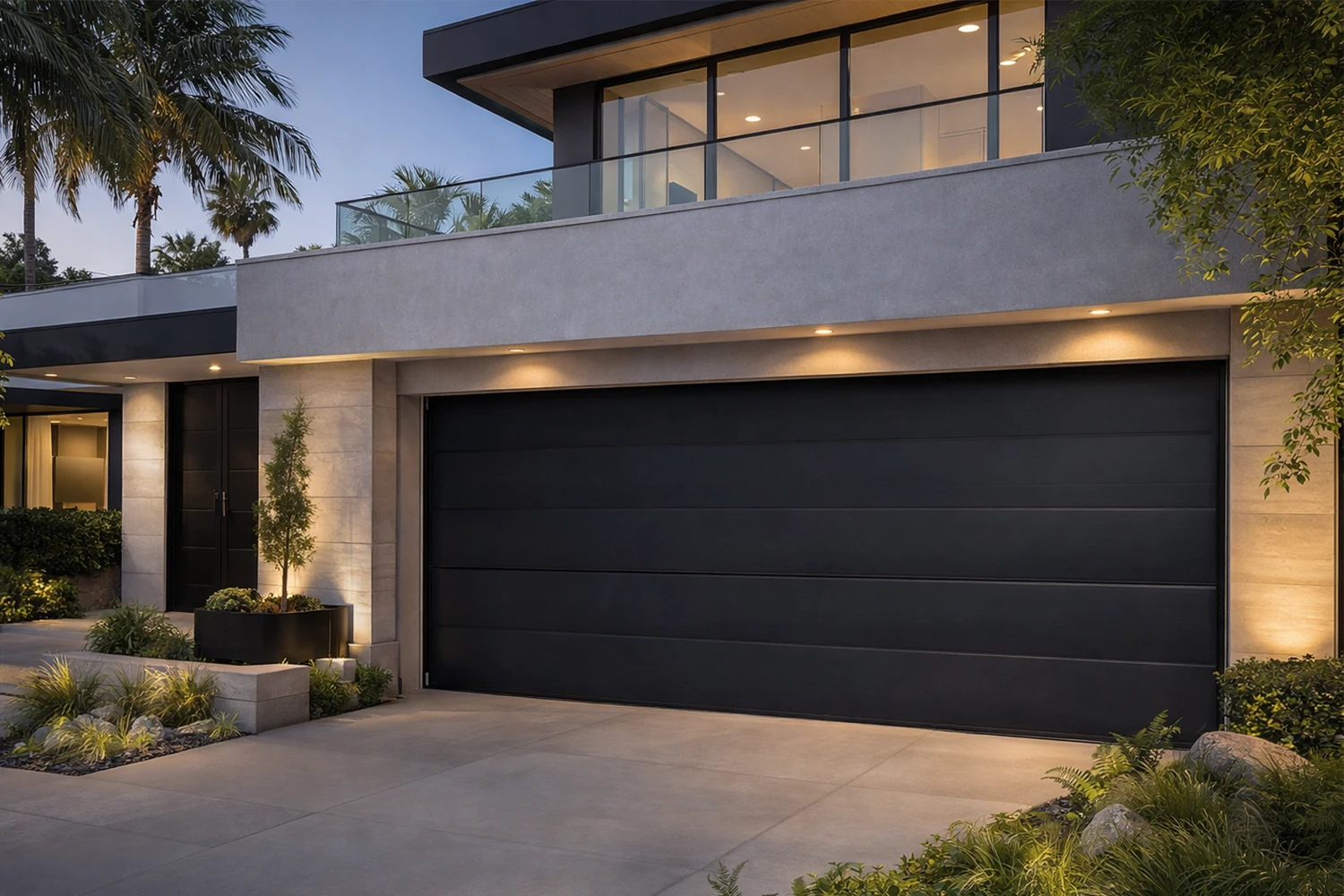

Heavy Duty Wind Load Garage Doors: Structural Engineering for ANSI/DASMA 108
In hurricane-prone and coastal industrial zones, overhead doors are the most critical vulnerability in a building’s envelope. Failure under dynamic wind pressure leads to catastrophic internal pressurization and roof loss. This technical document outlines the structural engineering behind heavy-duty wind load garage doors. We examine deflection limits, the integration of galvanized U-bar struts, and compliance with ANSI/DASMA 108 testing protocols, providing builders with the data necessary to mitigate risk and secure insurance compliance.
Dynamic Wind Pressure and Building Envelope Integrity
When specifying commercial doors for extreme weather, engineers must account for both positive (pushing) and negative (pulling) wind pressures. If a standard door buckles or derails during a Category 12 typhoon, the sudden influx of air pressurizes the facility, often resulting in structural blowout of the roof and walls. Heavy-duty wind load garage doors are engineered specifically to maintain the building envelope’s integrity under these severe dynamic loads.
Understanding ANSI/DASMA 108 Testing Protocols
Insurance underwriters and building inspectors require verifiable compliance. The ANSI/DASMA 108 standard dictates the testing methods for garage doors subjected to uniform static air pressure. ABX industrial doors undergo rigorous laboratory testing to meet and exceed these requirements. Our specified wind-rated doors are certified to withstand pressures up to 700N/m2, ensuring compliance with stringent coastal building codes.
Structural Reinforcement: U-Bars and Track Hardware
Achieving a 700N/m2 rating requires modifying the door’s entire structural assembly to control deflection (the bowing of the door under pressure).
- Galvanized Steel U-Bars: ABX integrates 2.0mm thick galvanized steel struts horizontally across the interior of the double-layer panels. The quantity and spacing of these U-bars are mathematically determined based on the door’s width and the target wind load, effectively neutralizing panel deflection.
- Heavy-Duty Track and Roller Systems: Wind loads transfer from the panels to the building structure via the rollers and tracks. We specify 2.5mm thick commercial galvanized steel tracks secured with heavy-duty brackets. Long-stem steel rollers ensure that even at maximum deflection, the door remains securely anchored within the track.
Procurement Risk Mitigation and OEM Capacity
For large-scale industrial projects, sourcing from a reliable manufacturer is a matter of risk mitigation. ABX operates a 36,000 sqm intelligent manufacturing base with CE, ISO9001, and ISO45001 certifications. Our automated production lines ensure that every reinforced panel meets exact engineering tolerances.
Furthermore, our QR Code Lifecycle System links every custom wind-rated door to its specific BOM. If a panel is damaged by flying debris, facility managers can scan the code to order the exact structurally rated replacement panel instantly, avoiding the installation of non-compliant parts that could void building insurance.
| Structural Component | ABX Engineering Specification | Risk Mitigation Benefit |
|---|---|---|
| Wind Pressure Rating | Up to 700N/m2 (ANSI/DASMA 108) | Prevents catastrophic building envelope failure during typhoons. |
| Panel Reinforcement | 2.0mm Galvanized Steel U-Bars | Controls deflection limits; prevents panel buckling. |
| Track Hardware | 2.5mm Steel Tracks + Long-Stem Rollers | Ensures door remains anchored under extreme negative pressure. |
Actionable Next Step: Secure your facility against extreme weather. Contact the ABX engineering team to submit your architectural blueprints for a custom wind load calculation, ANSI/DASMA 108 test reports, and a wholesale project quote.
