Essential Garage Door Safety Features: CE EN 13241-1 Compliance for Industrial Facilities

In heavy manufacturing and 24/7 logistics centers, overhead doors pose severe mechanical hazards. For Environment, Health, and Safety (EHS) managers, mitigating these risks is a strict regulatory mandate. Specifying commercial doors without redundant failsafes leads to catastrophic injuries and severe liability. This technical document details the essential garage door safety features required for CE EN 13241-1 compliance. We analyze inertia-triggered anti-drop devices, 6:1 safety factor cables, and PLC-integrated warning signals, providing a blueprint for securing ISO45001 facility compliance.

Mechanical Failsafes: Engineering Against Free-Falls

The dynamic weight of a heavy-duty industrial sectional door can exceed 500 kilograms. If the counterbalance system fails, the door becomes a lethal hazard. ABX engineers redundant mechanical failsafes into every commercial door to ensure absolute compliance with CE EN 13241-1 safety directives.

• Inertia-Triggered Spring Break Device: Torsion springs suffer metal fatigue over time. ABX integrates a specialized locking ratchet on the torsion shaft. If a spring snaps, the sudden loss of tension triggers the ratchet instantly, locking the shaft and arresting the door’s drop within 300mm.
• Cable Break Safety Device (6:1 Safety Factor): Lifting cables bear the entire panel weight. ABX specifies aircraft-grade steel cables with a 6:1 safety factor. Should a cable snap, our CE-certified bottom bracket mechanism deploys hardened steel cams directly into the 2.5mm galvanized tracks, locking the door securely in place.

Electronic Sensors and PLC Garage Door Signals

While mechanical failsafes protect against hardware failure, electronic sensors protect personnel and forklifts during automated operations. ABX utilizes IP65-rated PLC matrices to integrate multiple layers of electronic garage door safety features.

The primary defense is the pneumatic bottom edge sensor. If the descending door makes contact with an obstacle, the pressure wave instantly signals the motor to reverse direction. This is supplemented by photoelectric eye sensors installed at the base of the tracks. Furthermore, to manage high-traffic zones, we integrate an audible and visual garage door signal (strobe lights and sirens) via the PLC. This pre-movement warning activates 3 seconds before the door cycles, providing clear alerts in high-noise industrial environments.

OEM Traceability and EHS Audit Compliance

Maintaining safety compliance requires rigorous documentation and OEM-certified replacement parts. ABX, a leading wholesale manufacturer, operates a 36,000 sqm facility certified to ISO9001 and ISO45001 (Occupational Health and Safety) standards.

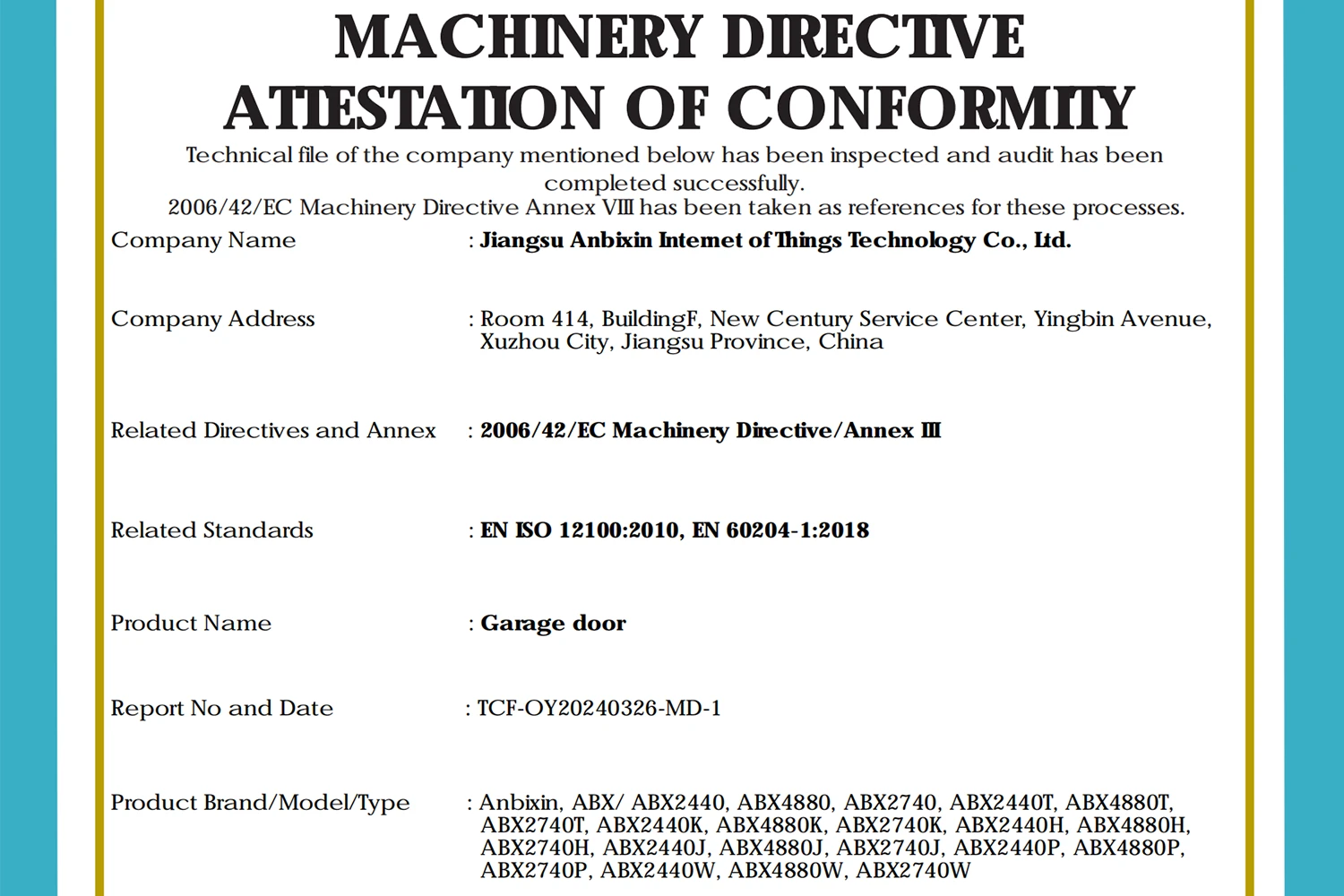

To support EHS audits, every ABX door features a QR Code Lifecycle System. Facility managers can scan the door’s ID to instantly access CE compliance certificates and the specific Bill of Materials (BOM). If a safety sensor is damaged, procurement can order the exact OEM replacement instantly, ensuring the door is never operated with bypassed safety mechanisms.

Actionable Next Step: Do not compromise on worker safety or facility compliance. Contact the ABX engineering team today to request CE EN 13241-1 certification documents, safety mechanism CAD drawings, and a wholesale project quote for your heavy-duty doors.
