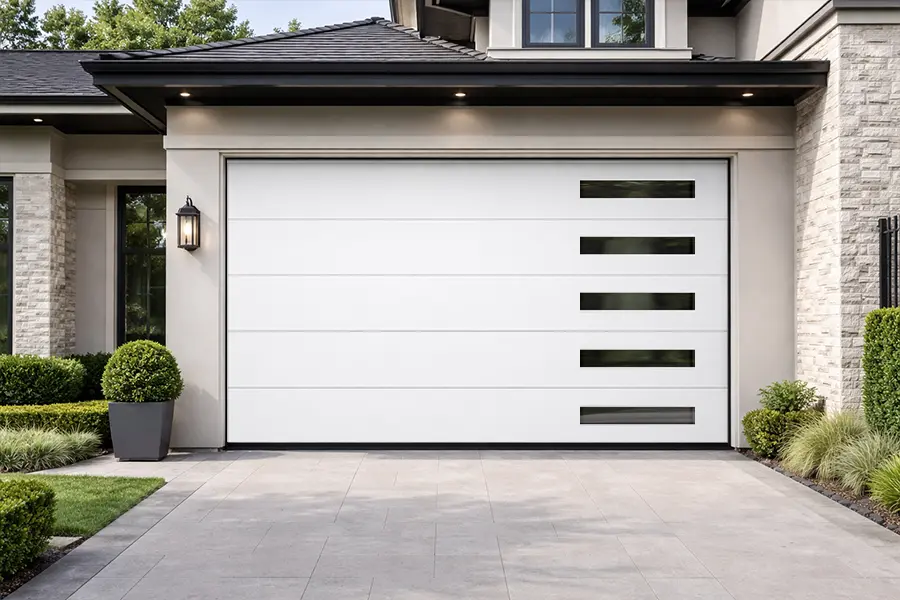

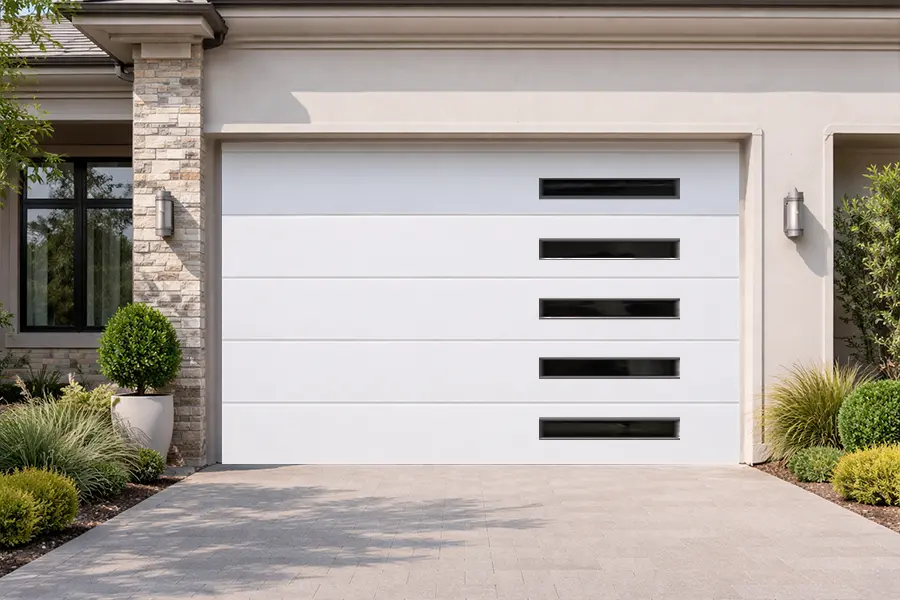

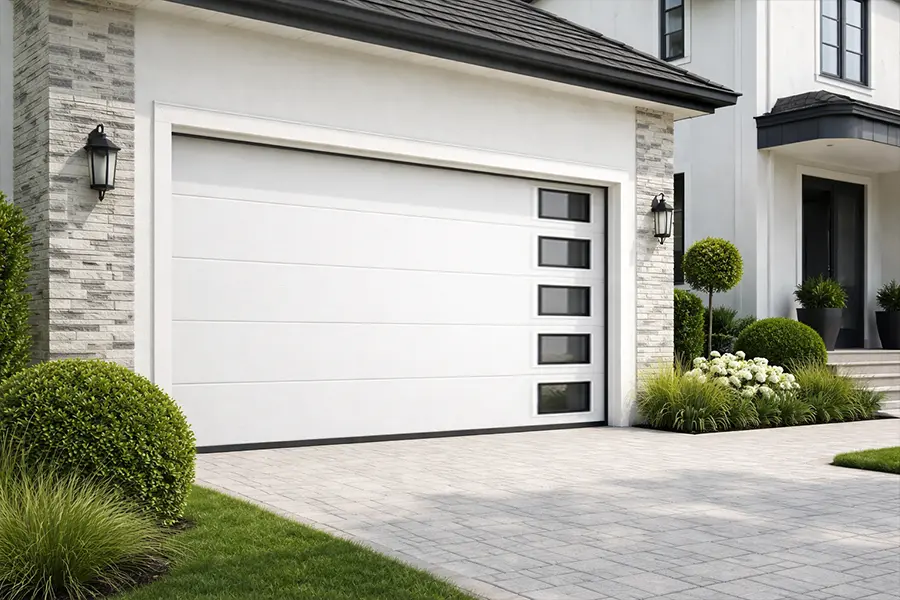

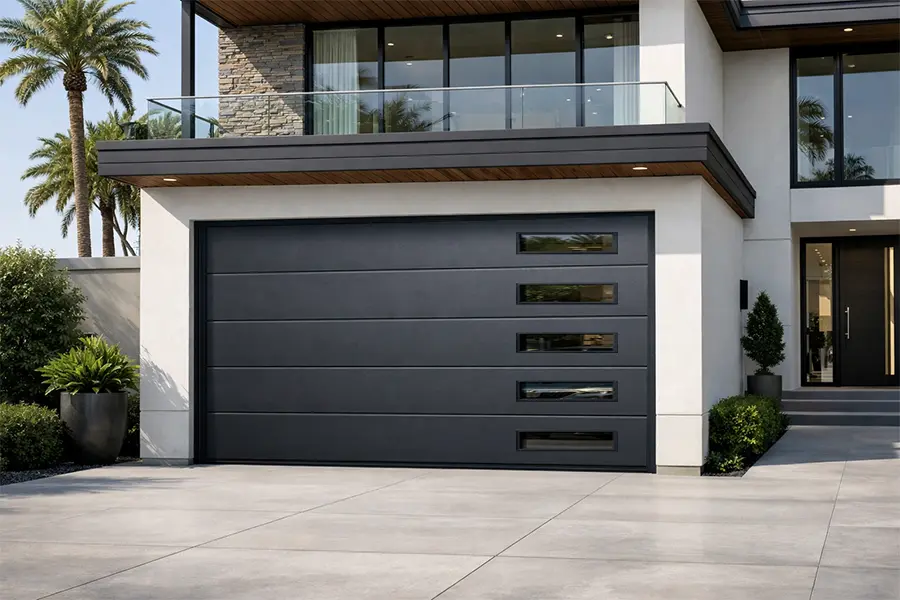

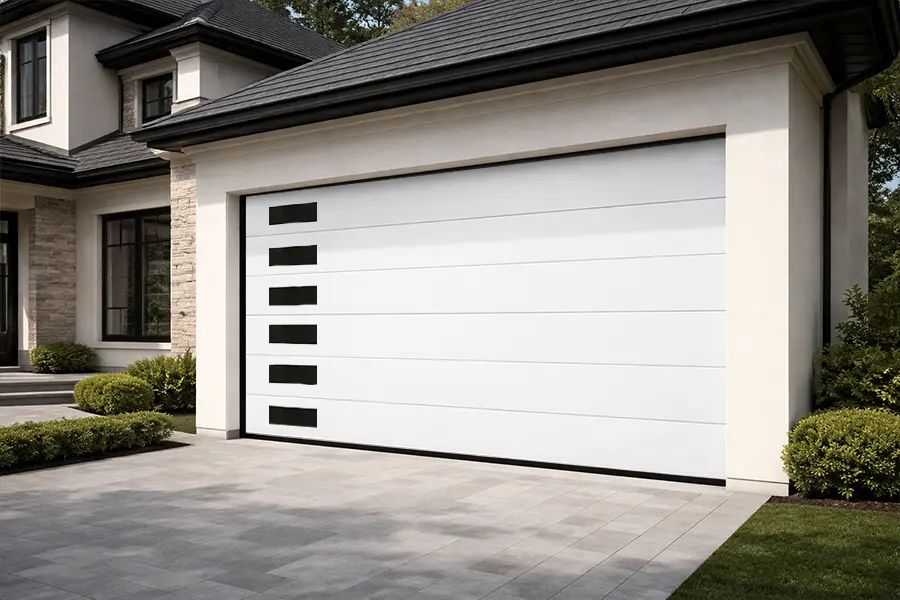

Modern Steel Garage Doors with Vertical Side Windows
ABX
Modern Steel Garage Doors with Vertical Side Windows: Structural Compensation and Thermal Performance Analysis
In the procurement of high-performance building components, the integration of Vertical Side Windows into Modern Steel Garage Doors is often scrutinized for potential structural and thermal vulnerabilities. This technical analysis explores how advanced engineering protocols—specifically structural reinforcement and thermal environment simulation—ensure that these systems exceed ANSI/DASMA standards while delivering targeted natural lighting.
Structural Compensation for Side Window Integration (ANSI/DASMA 108)
The removal of core material to create window apertures inherently reduces the section modulus of a Sectional Door panel. To maintain Load-bearing integrity, a rigorous structural compensation protocol is required to prevent panel buckling under high wind loads.
Internal Reinforcement : For every vertical window cutout, we integrate 2.0mm (14-gauge) cold-formed galvanized steel C-channels within the panel stiles. This reinforcement ensures that the structural rigidity of the window-side stile is equivalent to that of a solid panel.
Wind Load Performance : Per ANSI/DASMA 108 static air pressure testing, these reinforced panels withstand wind loads up to 700 N/m² (Class 3/4). Under peak pressure, the horizontal deflection is strictly controlled within 1/120th of the door width, ensuring no permanent deformation of the steel skins.
Quality Assurance & Global Compliance
Beyond technical engineering, ABX is committed to international standards of excellence. Our production facility and quality management systems are fully certified under ISO 9001 (Quality Management), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health and Safety). Furthermore, our door systems carry the CE (EU Standard) Attestation of Conformity, ensuring compliance with stringent European safety and machinery directives. These certifications underscore our dedication to sustainable manufacturing and reliable, long-term operational safety.
Thermal Environment Simulation and Air Infiltration Control
The interface between Tempered Insulated Glass and the sandwich panel is a critical zone for Thermal Bridging. We utilize a 42kg/m³ Polyurethane Core and advanced sealing to maintain a high thermal resistance.
Elastic Compensation Mechanism : Due to the differing linear thermal expansion coefficients of glass and steel, we employ a dual-durometer EPDM gasket system. This allows for up to 1.5mm of thermal movement without compromising the airtight seal, maintaining an Air infiltration rate compliant with ANSI/DASMA 105.
Thermal Efficiency : By eliminating heat bridges at the window frame, the system achieves a consistent U-value of ≤≤
0.92 W/m²K. This performance level is essential for maintaining the energy rating of the overall building envelope in extreme climates.
Selection Matrix: Geographic and Climatic Data Requirements
From a B2B procurement perspective, the specification of Modern Garage Doors must be data-driven, matching the door’s performance to the project’s specific environmental stressors.
High-Velocity Hurricane Zones : In regions requiring compliance with the Florida Building Code (HVHZ), doors must meet ANSI/DASMA 115. We recommend specifying Vertical Side Windows with 6mm+6mm laminated tempered glass and 2.5mm heavy-duty reinforced tracks to resist large missile impacts.
Extreme Cold Climates : For regions with ambient temperatures consistently below -20°C, procurement should specify “Triple-Pane” insulated glazing with argon gas filling. This configuration prevents interior condensation and maintains the structural integrity of the EPDM seals over long-term exposure.
Note: A lower U-value means better insulation. Our rating (≤1.5) qualifies as a high-efficiency insulated door, whereas single-layer doors (U-value ≥5.0) offer virtually no thermal protection.
Lifecycle Reliability and Total Cost of Ownership (TCO)
A primary engineering objective is to minimize the frequency of component failure over a 20-year service life. Our components are selected based on their ability to meet or exceed standard lifecycle expectations.
Spring System Durability : Meets the performance requirements of ANSI/DASMA 109 for high-cycle applications. Our high-strength 60Si2Mn torsion springs are engineered for 50,000 cycles. Under a standard duty cycle (4 cycles/day), the anticipated interval before the first spring replacement is 34 years, significantly exceeding the 7-year average of standard 10,000-cycle springs.
Coating Integrity : The steel skins feature a 30μm PVDF coating, engineered to provide salt-spray resistance exceeding 1,000 hours. This design reduces TCO by mitigating the need for surface remediation in corrosive environments.
Technical Specifications Summary
| Parameter | Engineering Value | Compliance Standard |
| Cycle Life | 50,000 Cycles (34-Year Life) | ANSI/DASMA 109 |
| Wind Resistance | Up to 700 N/m² (Class 3/4) | ANSI/DASMA 108 |
| Thermal Transmittance | U-value ≤ 0.92 W/m²K | ANSI/DASMA 105 |
| Insulation Core | 42kg/m³ CFC-Free Polyurethane | ASTM C518 |
| Reinforcement Steel | 2.0mm Cold-Formed Galvanized | ASTM A653 |
| Glazing Type | 3mm+3mm Tempered Insulated | ANSI Z97.1 |
As a professional manufacturer, ABX Doors offers full customization. Whether you need specific materials, specific size, unique colors, or tailored designs to match your architectural style, we provide the perfect solution.
Material Customization
We offer a wide range of material options to meet different functional and architectural requirements, including industrial, commercial, and high-end residential applications. Customers can choose materials based on strength, usage frequency, corrosion resistance, and budget.
Available Materials：
~Galvanized steel panels with PU insulation
~Aluminum insulated panels
~Aluminum frame with glass or polycarbonate (full vision door)
How to Choose the Best Materials for Insulated Black Sectional Doors
Color Customization
Garage door colors are typically customized based on the RAL color system. Standard colors are available for faster delivery, while custom colors can be produced upon request. Slight color variations may occur due to different materials and surface finishes. Final color is subject to approved samples.
Supported Options
~RAL standard colors
~Customer-specified color codes or samples
Explore RAL Standard Color Options
Surface Texture Customization
Door panel surface textures can be customized to match different architectural styles, balancing durability with aesthetic appeal for modern, industrial, or classic buildings.
Available Textures
~Smooth
~Stucco / Orange Peel
~Wood Grain
~Embossed Texture
Vision Panels & Wicket Door Customization
To improve natural lighting, access efficiency, and user convenience, sectional overhead doors can be equipped with various vision panels and wicket doors, ideal for high-traffic areas and buildings requiring visibility.
Optional Configurations
~Vision panels: long strip, square, or custom sizes
~Infill materials: tempered glass or polycarbonate
~Wicket door: with or without threshold
Technical Compliance Disclaimer
The engineering parameters and performance data stated in this article are based on internal testing protocols aligned with ANSI/DASMA standards. While the product design follows the guidelines set forth in ANSI 102/108/115, specific performance ratings may vary based on site-specific installation and local building code requirements. Professional submittals and certified test reports are available upon request for engineering review.
Modern Steel Garage Doors with Vertical Side Windows
Reliable Global Logistics
Global Reach: With years of experience exporting to North America, Europe, the Middle East, and Southeast Asia, we provide full support for sea freight, including all necessary export documentation (CO, Form E, etc.) and real-time tracking.
Hi, I’m Janice, the sales manager at ABX Doors. I’ve helped 500+ clients find the perfect garage door solution. How can I help you today?
To Industrial Sectional Doors
Need a heavier solution for your warehouse or factory? Explore our Industrial Sectional Doors, designed for extra-large openings and high-frequency operation.
To High-Speed Doors
Looking to improve logistics efficiency and temperature control? Check out our High-Speed Doors for rapid-access environments
To Dock Levelers/Seals
Complete your loading dock setup. We also offer heavy-duty Dock Levelers and Dock Seals for a seamless logistics experience.
How do vertical side windows affect the structural integrity of a wind-rated garage door?
To maintain ANSI/DASMA 108 compliance, vertical side windows are integrated using 2.0mm cold-formed galvanized steel C-channels within the panel stiles. This structural compensation ensures that the section modulus remains consistent with solid-panel configurations, preventing buckling under peak wind loads.
Is it possible to achieve high thermal efficiency with glass-inserted doors?
Yes. By utilizing a 50mm PU-insulated core (42kg/m³) and dual-durometer EPDM gaskets with thermal break frames, our systems are designed to achieve a U-value of ≤≤
0.92 W/m²K, effectively minimizing thermal bridging even in designs with high glazing ratios.
