Industrial Track Garage Doors: Engineering Curved, Horizontal, and Vertical Lift Systems

The operational stability of an industrial sectional door relies entirely on its track configuration. For structural engineers and facility architects, specifying the correct track system is dictated by the building’s available headroom, roof pitch, and interior logistics layout. This technical document analyzes the engineering principles behind garage door curved track (standard lift) and garage door horizontal (vertical/high lift) systems. We detail 15-inch radius curves, 2.5mm galvanized steel specifications, and ANSI/DASMA 108 wind load transfer for wholesale commercial projects.

Headroom Calculations and Curved Track Engineering

Track garage doors must be engineered to integrate flawlessly with the building’s structural envelope without interfering with overhead cranes or HVAC ductwork. The deciding metric is “headroom”—the vertical clearance between the top of the door opening and the lowest ceiling obstruction.

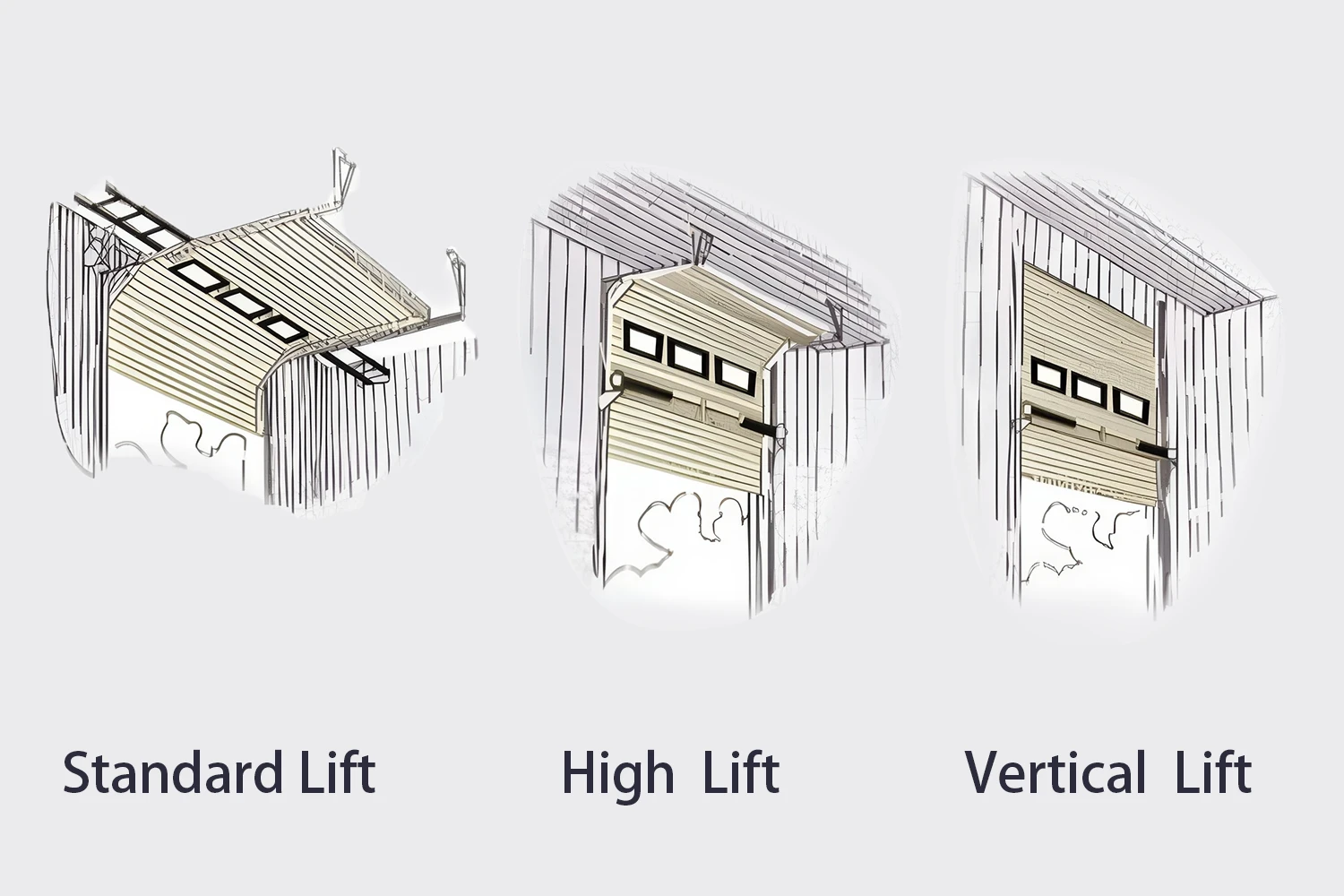

Garage Door Curved Track: Standard and Roof Pitch Lift

When ceiling height is limited, engineers specify a garage door curved track system.

• Standard Lift (15-Inch Radius): This configuration requires 15 to 18 inches of headroom. The track utilizes a precise 15-inch radius curve above the opening, guiding the door panels to rest horizontally parallel to the ceiling.
• Roof Pitch Follower: For steel structure facilities with pitched roofs, standard horizontal tracks waste vertical space. ABX engineers custom roof pitch tracks where the horizontal section is angled to match the exact pitch of the roof (e.g., 10 or 15 degrees), maximizing interior clearance.

Garage Door Horizontal and Vertical Lift Systems

If the facility requires forklifts to operate close to the door, a High Lift modification is applied. The track extends vertically before curving horizontally. However, in heavy manufacturing plants equipped with bridge cranes, horizontal tracks suspended from the ceiling are unfeasible. If headroom exceeds the door height, ABX specifies a Vertical Lift system. The tracks run straight up the wall, and the door opens vertically without any horizontal intrusion, maximizing the usable cubic volume of the facility.

Structural Integrity and Wind Load Transfer

The track system is the structural bridge that transfers dynamic wind loads from the door panels to the building envelope. Substandard tracks will buckle under pressure, causing catastrophic door failure.

ABX specifies heavy-duty 2.0mm to 2.5mm thick galvanized steel for all track garage doors. The tracks are secured to the wall using continuous commercial-grade steel angles. This rigid anchoring ensures compliance with ANSI/DASMA 108 standards, allowing the door assembly to withstand wind pressures up to 700N/m2 (Category 12 typhoon) without derailing.

OEM Manufacturing Precision and BOM Traceability

Custom track configurations require a wholesale manufacturer with exact engineering tolerances. ABX operates a 36,000 sqm automated facility, utilizing CNC roll-forming machines to ensure every curved and straight track section aligns perfectly, eliminating roller binding.

To support long-term facility maintenance, every ABX door utilizes a QR Code Lifecycle System. By scanning the door’s ID, maintenance teams access the specific Bill of Materials (BOM). If a forklift damages a lower track section, procurement can instantly order the exact dimensioned replacement part, avoiding the downtime associated with manual fabrication.

Actionable Next Step: Ensure your facility’s doors are engineered for optimal spatial efficiency. Contact the ABX engineering team today to submit your blueprints for a custom track layout CAD, structural load analysis, and a wholesale project quote.
