High-Speed Spiral Doors: The Ultimate Engineering Solution for Industrial Access
ABX
High-Speed Spiral Doors: The Ultimate Engineering Solution for Industrial Access
Modern logistics and manufacturing facilities require a sophisticated entryway that balances high-speed operation with unyielding security. High-speed spiral doors represent the pinnacle of this engineering evolution, providing a robust alternative to traditional sectional or fabric doors.
You May Also Need
High-Speed Spiral Doors
By utilizing a unique non-contact spiral track, these spiral doors (KD 18) prevent wear and tear during high-frequency cycles, ensuring a lifespan exceeding hundreds of thousands of operations. At ABX Doors, we engineer professional-grade aluminum high speed doors (KD 14) that integrate structural strength with thermal efficiency, making them the preferred hard fast door (KD 12) for high-traffic environments.
Certification
CE (EU Standard), ISO 9001, ISO 14001, ISO 45001
The defining feature of a rapid spiral door (KD 22) is the circular “spiral” guide rail located at the header. Unlike standard overhead doors where panels slide against each other, the spiral path ensures that the panels never touch during the opening and closing phases.
Non-Contact Operation: As the door ascends, the circular spiral guides the panels into a neat roll without friction. This eliminates surface scratches and mechanical noise, extending the life of the metal high speed doors.
High-Velocity Performance: The spiral design allows for extreme velocities. ABX systems achieve opening speeds of up to 1.5 – 2.5 meters per second, which is essential for maintaining a strict thermal envelope in insulated high speed doors.
As a professional manufacturer prioritizing EEAT (Expertise, Authoritativeness, Trustworthiness), ABX Doors utilizes only the highest industrial-grade materials for our hard fast door (KD 12) panels.
Heavy-Duty Aluminum Skins: We utilize 0.4mm to 0.7mm thick 6063-T5 aluminum alloy for the exterior and interior faces. This alloy provides exceptional tensile strength and corrosion resistance, ideal for coastal warehouses.
High-Density Insulation: Each panel is 40mm thick and injected with high-pressure polyurethane (PU) foam. This creates a sandwich structure that achieves a high R-value, preventing heat infiltration and significantly reducing HVAC energy expenditure.
A high speed roller door (KD 24) is only as reliable as its drive system. We equip our spiral series with advanced servo technology to handle the demands of 24/7 industrial use.
Precision Servo Motors: Our motors feature absolute encoders and variable frequency drives (VFD). This allows for a soft-start and soft-stop sequence, which reduces mechanical shock to the metal high speed doors (KD 19) hardware and extends the cycle life to over 250,000 operations.
Manual Override: In the event of a power failure, every ABX spiral door includes an emergency manual release or a chain hoist to ensure facility access remains uninterrupted.
Industrial safety standards are a critical component of our EEAT commitment. We integrate multiple electronic protection layers into every high speed spiral door.
Safety Light Curtains: We install high-resolution infrared light curtains within the side tracks. These detect even small obstructions across the entire doorway height, instantly halting movement.
Bottom Edge Sensors: A wireless pressure sensor at the base of the door provides secondary protection, causing the curtain to reverse to the open position upon contact.
Radar and Loop Detectors: For hands-free forklift operation, we offer microwave radar and magnetic floor loops that open the door automatically, further increasing logistics throughput.
ABX Doors provides comprehensive customization (KD 9) to ensure that our aluminum high speed doors (KD 14) fit seamlessly into any industrial project.

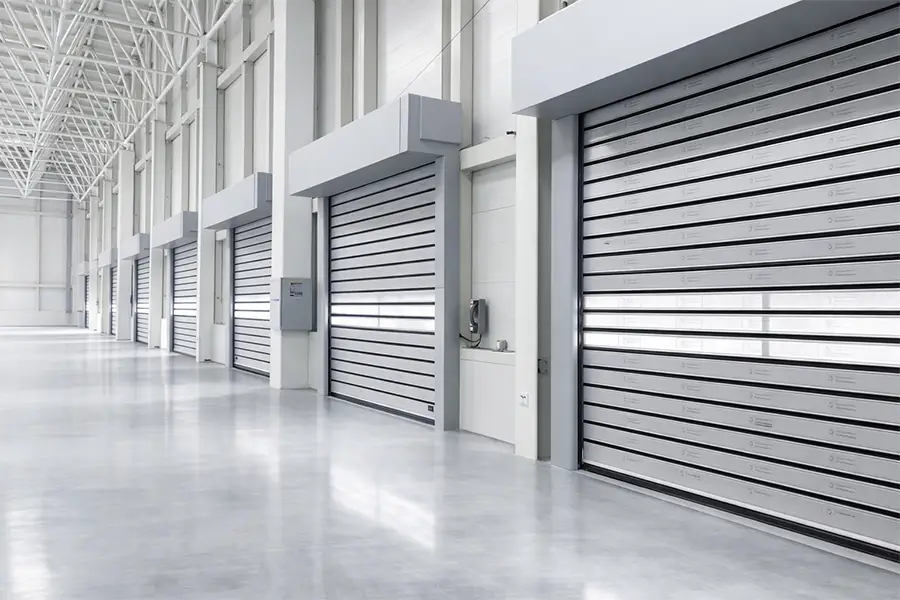

Logistics Hubs: Use our rapid spiral doors (KD 22) for external loading bays where wind resistance and security are paramount.
Automotive Plants: Maintain high productivity and dust control in assembly zones with fast, silent operation.
Custom Finishes: We offer powder coating in all RAL colors and vision panel options to match your corporate branding and operational visibility needs.
Investing in High-Speed Spiral Doors from ABX Doors signifies an investment in unmatched durability, energy efficiency, and operational safety. As an ISO-certified manufacturer, we provide the technical transparency, detailed CAD drawings, and global export support required for high-stakes industrial developments.
ABX Doors understands that every brand has a unique identity. We offer comprehensive customization for our full view glass doors.
Color Matching: Beyond standard clear anodized finishes, we provide powder coating in any RAL color to align with your brand’s palette.
Glazing Finishes: Choose from clear, frosted, bronze-tinted, or mirrored glass to achieve the specific balance of transparency and privacy required for your space.
As a professional manufacturer, ABX Doors offers full customization. Whether you need specific materials, specific size, unique colors, or tailored designs to match your architectural style, we provide the perfect solution.
Material Customization
We offer a wide range of material options to meet different functional and architectural requirements, including industrial, commercial, and high-end residential applications. Customers can choose materials based on strength, usage frequency, corrosion resistance, and budget.
Available Materials：
~Galvanized steel panels with PU insulation
~Aluminum insulated panels
~Aluminum frame with glass or polycarbonate (full vision door)
How to Choose the Best Materials for Insulated Black Sectional Doors
Color Customization
Garage door colors are typically customized based on the RAL color system. Standard colors are available for faster delivery, while custom colors can be produced upon request. Slight color variations may occur due to different materials and surface finishes. Final color is subject to approved samples.
Supported Options
~RAL standard colors
~Customer-specified color codes or samples
Explore RAL Standard Color Options
Surface Texture Customization
Door panel surface textures can be customized to match different architectural styles, balancing durability with aesthetic appeal for modern, industrial, or classic buildings.
Available Textures
~Smooth
~Stucco / Orange Peel
~Wood Grain
~Embossed Texture
Vision Panels & Wicket Door Customization
To improve natural lighting, access efficiency, and user convenience, sectional overhead doors can be equipped with various vision panels and wicket doors, ideal for high-traffic areas and buildings requiring visibility.
Optional Configurations
~Vision panels: long strip, square, or custom sizes
~Infill materials: tempered glass or polycarbonate
~Wicket door: with or without threshold
High-Speed Spiral Doors
Professional Packaging
Reliable Global Logistics
Global Reach: With years of experience exporting to North America, Europe, the Middle East, and Southeast Asia, we provide full support for sea freight, including all necessary export documentation (CO, Form E, etc.) and real-time tracking.
Hi, I’m Janice, the sales manager at ABX Doors. I’ve helped 500+ clients find the perfect garage door solution. How can I help you today?
To Industrial Sectional Doors
Need a heavier solution for your warehouse or factory? Explore our Industrial Sectional Doors, designed for extra-large openings and high-frequency operation.
To High-Speed Doors
Looking to improve logistics efficiency and temperature control? Check out our High-Speed Doors for rapid-access environments
To Dock Levelers/Seals
Complete your loading dock setup. We also offer heavy-duty Dock Levelers and Dock Seals for a seamless logistics experience.
FAQ
Everything You Need to Know About Modern Black Sectional Doors
High-Speed Spiral Doors
High-performance industrial hard fast doors featuring frictionless spiral technology, 6063-T5 aluminum, and 2.5m/s speed. Ideal for high-traffic warehouses.
