High-Speed Stacking Door: Wind-Resistant Solutions for Large Exterior Openings
Large exterior openings present a structural challenge for industrial facilities: balancing rapid logistics flow with the necessity of extreme weather protection. The High-Speed Stacking Door (PVC fold-up door) is engineered to resolve this mechanical conflict. By utilizing a robust folding lifting mechanism rather than a traditional roll-up design, this door provides verifiable wind resistance and structural durability for oversized exterior channels and heavy-duty industrial environments.
Core Engineering: Load Transfer and Wind Resistance
Standard high-speed roll-up doors are prone to curtain blowout or track derailment under severe wind loads, especially in openings exceeding 25 square meters. The high-speed stacking door mitigates this structural risk through its load-transfer design.

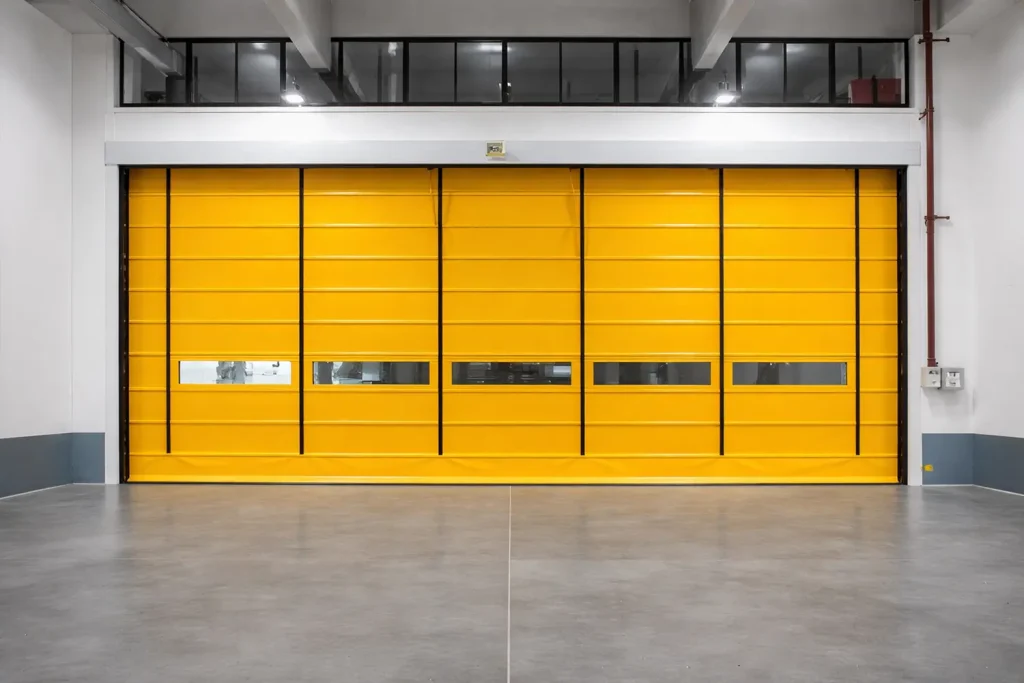

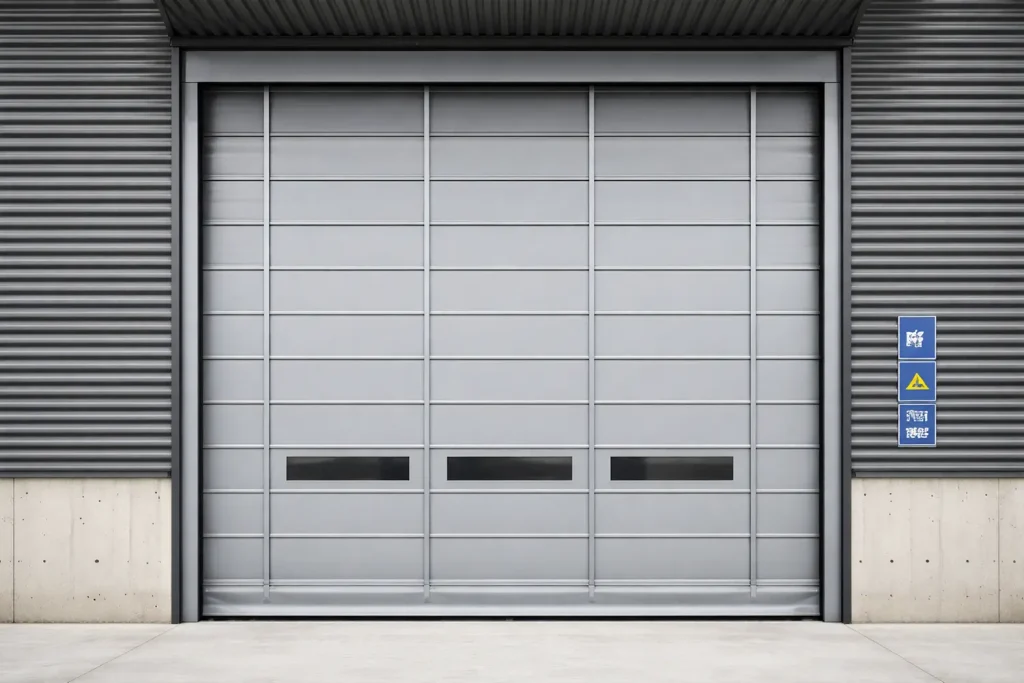

The PVC curtain is reinforced with heavy-duty horizontal metal tubes (wind ribs). Instead of rolling around a top shaft, high-tensile lifting straps pull the curtain upward from the bottom, causing the sections to fold and stack above the header. This configuration transfers wind pressure directly from the horizontal ribs into the vertical steel guide tracks. This allows the door assembly to maintain operational integrity under significant positive or negative pressure differentials.
Quality Assurance & Global Compliance
Beyond technical engineering, ABX is committed to international standards of excellence. Our production facility and quality management systems are fully certified under ISO 9001 (Quality Management), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health and Safety). Furthermore, our door systems carry the CE (EU Standard) Attestation of Conformity, ensuring compliance with stringent European safety and machinery directives. These certifications underscore our dedication to sustainable manufacturing and reliable, long-term operational safety.
Key Performance Parameters
To meet the specifications required by EPC contractors and logistics hub developers, this stacking door operates on several critical performance metrics:
Verified Wind Load Capacity: Engineered and tested to meet Class 4 or Class 5 wind resistance (EN 12424 standard), suitable for coastal facilities or high-exposure industrial parks.
Operational Speed: Driven by a heavy-duty geared motor system, it achieves opening speeds of 0.8 m/s to 1.2 m/s, minimizing HVAC energy loss in large-volume buildings.
BMS Integration: The control unit supports standard industrial communication protocols, allowing seamless integration with Building Management Systems (BMS) and existing dock leveler interlocks.
Application Environments and Material Durability

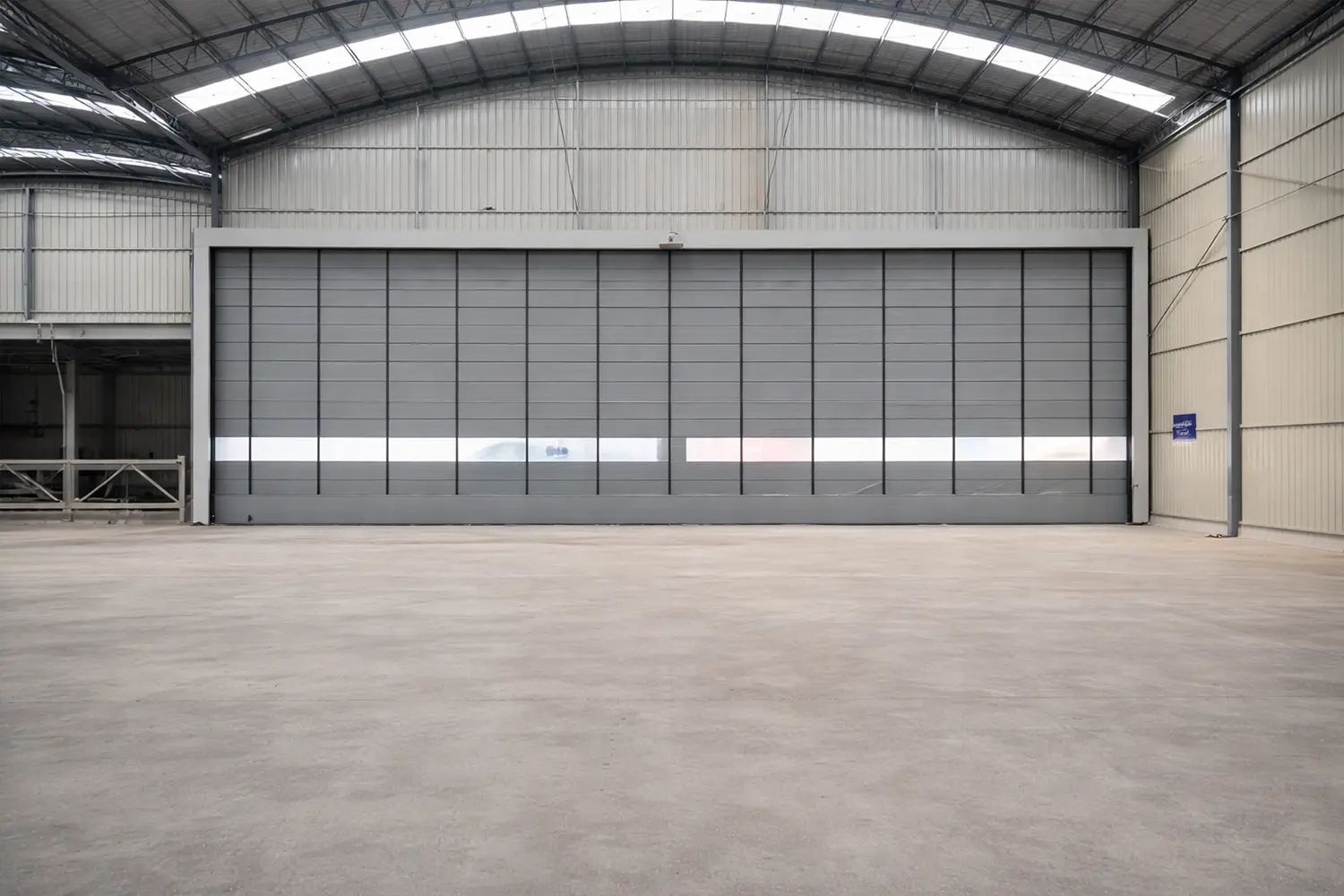

The high-speed stacking door is specified for facilities requiring oversized access points, typically ranging from 6 to 20 meters in width. Primary deployment environments include mining processing plants, shipyard painting booths, aerospace hangars, and heavy manufacturing facilities.
The curtain utilizes 0.8mm – 1.2mm high-density PVC fabric that is UV-resistant and chemically inert, preventing degradation from industrial exposure. By rapidly sealing massive exterior openings, it effectively isolates internal environments from particulate ingress and extreme weather.
Technical Specifications
| Parameter | Technical Specification |
| Maximum Dimensions | Up to 20,000 mm (W) x 15,000 mm (H) |
| Curtain Material | 1.2 m/s to 2.0 m/s (Adjustable via0.8mm – 1.2mm High-density PVC fabric (UV & tear-resistant) |
| Wind Ribs | Galvanized steel or high-yield aluminum alloy tubes |
| Opening Speed | 0.8 m/s to 1.2 m/s (Adjustable via Inverter) |
| Wind Resistance | Class 4 – Class 5 (EN 12424 standard) |
| Drive System | Heavy-duty industrial brake motor with absolute encoder |
Engineering Support & Modularity for Contractors (ABX)
For industrial door installers and general contractors, installation efficiency and maintenance simplicity directly impact project margins. ABX designs these stacking doors with a focus on modularity. The PVC curtain is segmented; in the event of mechanical damage, individual sections or lifting straps can be replaced on-site without dismantling the entire door structure.
Furthermore, our control panels are pre-wired and utilize plug-and-play aviation connectors, significantly reducing on-site electrical installation time. Backed by our 36,000 sqm automated manufacturing facility in Wuxi, China, we ensure strict dimensional tolerances through robotic welding and guarantee consistent lead times for large-scale EPC projects. All systems are CE, ISO9001, and ISO45001 certified to streamline your site compliance audits.
Conclusion
In conclusion, industrial sectional doors with wicket doors are the ideal choice for modern enterprises to enhance operational efficiency, thanks to their excellent pedestrian-vehicle separation, high wind resistance, and superior insulation. As a premium manufacturer of modern garage doors, ABX boasts massive production scale and top-tier OEM/ODM capabilities, exporting products to over 70 countries worldwide.
High-Speed Stacking Door: Wind-Resistant Solutions for Large Exterior Openings
Reliable Global Logistics
Global Reach: With years of experience exporting to North America, Europe, the Middle East, and Southeast Asia, we provide full support for sea freight, including all necessary export documentation (CO, Form E, etc.) and real-time tracking.
Hi, I’m Janice, the sales manager at ABX Doors. I’ve helped 500+ clients find the perfect garage door solution. How can I help you today?
To Industrial Sectional Doors
Need a heavier solution for your warehouse or factory? Explore our Industrial Sectional Doors, designed for extra-large openings and high-frequency operation.
To High-Speed Doors
Looking to improve logistics efficiency and temperature control? Check out our High-Speed Doors for rapid-access environments
To Dock Levelers/Seals
Complete your loading dock setup. We also offer heavy-duty Dock Levelers and Dock Seals for a seamless logistics experience.
How does the installation process differ from standard high-speed doors?
Due to the heavy-duty nature of the stacking door, the vertical tracks and top header require robust structural mounting points (welded or heavy-duty anchors). However, the electrical setup is streamlined. We provide pre-wired control boxes with plug-and-play connectors for the motor, encoder, and safety sensors, reducing commissioning time for installation crews.
What is the maintenance protocol for the lifting straps on oversized doors?
The lifting straps are manufactured from high-tensile, wear-resistant nylon. Routine maintenance requires visual inspections for fraying every 6 months and ensuring the top shaft pulleys remain free of debris. The straps are designed as modular components; if wear is detected, a single strap can be replaced independently without removing the curtain or wind ribs.
