Commercial Insulated Sandwich Doors: Engineering Thermal Efficiency for Industrial Facilities
ABX
Commercial Insulated Sandwich Doors: Engineering Thermal Efficiency for Industrial Facilities
Architectural efficiency in large-scale logistics and manufacturing hubs relies heavily on the thermal integrity of external entry points. Commercial insulated sandwich doors provide the primary defense against energy loss, environmental infiltration, and unauthorized access.
You May Also Need
Commercial Insulated Sandwich Sectional Doors
By utilizing a triple-layer construction—consisting of two layers of steel bonded to a high-density core—these insulated sectional doors (KD 13) offer a superior thermal barrier compared to standard single-layer roll-up systems. At ABX Doors, we engineer professional-grade polyurethane sandwich panels (KD 8) that prioritize structural rigidity and long-term energy savings for warehouse garage doors (KD 18).
Certification
CE (EU Standard), ISO 9001, ISO 14001, ISO 45001
The effectiveness of energy efficient industrial doors (KD 10) starts with the “Steel-PU-Steel” configuration. This composite structure ensures that the door remains lightweight for high-speed operation while possessing the strength of a solid wall.
Galvanized Steel Skins: ABX utilizes 24-gauge or 26-gauge galvanized steel for the exterior faces. These layers undergo a multi-stage process involving zinc coating and polyester priming to prevent oxidation. This makes our steel sandwich doors (KD 15) ideal for corrosive industrial environments or coastal logistics zones.
CFC-Free Polyurethane Core: We inject high-density polyurethane foam (PU) under high pressure between the steel layers. This foaming process creates a strong mechanical bond that prevents panel delamination and achieves an exceptional R-value garage doors (KD 12) rating of 13.5 or higher.
Managing the internal climate of a temperature-controlled facility requires more than just insulated panels; it necessitates a comprehensive weather-sealed commercial door (KD 11) system.
Integrated Thermal Breaks: Standard metal doors often suffer from thermal bridging, where heat transfers through the metal frame. ABX sandwich panels feature a non-conductive thermal break at the joints, effectively decoupling the interior and exterior steel surfaces to maximize energy retention.
EPDM Perimeter Sealing: To prevent air leakage (infiltration), we install industrial-grade EPDM rubber seals on the header, jambs, and bottom rail. The bottom seal is specifically designed to conform to uneven floor surfaces, creating a hermetic barrier against dust, moisture, and pests.

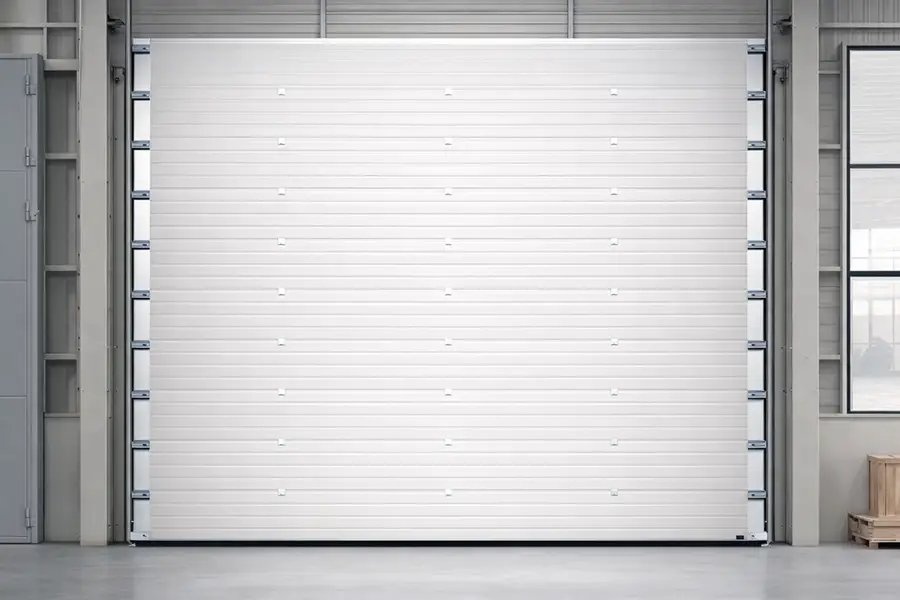

A commercial overhead door (KD 22) must withstand thousands of operation cycles annually without mechanical fatigue. ABX Doors integrates heavy-duty hardware to match the longevity of our panels.
Reinforced Track Systems: We utilize 2-inch or 3-inch galvanized steel tracks with a heavy-duty gauge. These tracks provide a stable path for the rollers, ensuring smooth travel even for extra-large industrial sandwich panel doors (KD 14).
High-Cycle Torsion Springs: Our counterbalancing systems feature helical torsion springs rated for 25,000, 50,000, or even 100,000 cycles. This engineering choice reduces maintenance frequency and prevents operational downtime in busy logistics bays.
Safety is a critical pillar of our EEAT (Expertise, Authoritativeness, Trustworthiness) commitment. We provide multiple layers of protection to safeguard personnel and forklift assets.
Cable Failure Devices: We equip every insulated door with safety bottom brackets. In the event of a lifting cable failure, the safety wedge instantly locks into the track, preventing the door from falling.
Advanced Sensing Systems: For motorized installations, we offer infrared safety light curtains and wireless sensing edges. These components ensure that the door reverses immediately upon detecting an obstruction, meeting global industrial safety standards.
As a premier manufacturer, ABX Doors provides comprehensive custom garage door (KD 9) solutions tailored to specific architectural requirements.
Aesthetic Options: We offer a variety of surface textures, including stucco-embossed and wood grain finishes, available in all RAL colors to match corporate branding.
Vision Panels: Integrate double-pane tempered glass windows into the sandwich panels to enhance natural lighting and allow staff to monitor external traffic without opening the door.
Investing in Commercial Insulated Sandwich Doors from ABX Doors signifies a commitment to operational efficiency, structural security, and environmental responsibility. Our high R-value systems ensure that your industrial facility remains protected against the elements while minimizing overhead costs.
ABX Doors understands that every brand has a unique identity. We offer comprehensive customization for our full view glass doors.
Color Matching: Beyond standard clear anodized finishes, we provide powder coating in any RAL color to align with your brand’s palette.
Glazing Finishes: Choose from clear, frosted, bronze-tinted, or mirrored glass to achieve the specific balance of transparency and privacy required for your space.
As a professional manufacturer, ABX Doors offers full customization. Whether you need specific materials, specific size, unique colors, or tailored designs to match your architectural style, we provide the perfect solution.
Material Customization
We offer a wide range of material options to meet different functional and architectural requirements, including industrial, commercial, and high-end residential applications. Customers can choose materials based on strength, usage frequency, corrosion resistance, and budget.
Available Materials：
~Galvanized steel panels with PU insulation
~Aluminum insulated panels
~Aluminum frame with glass or polycarbonate (full vision door)
How to Choose the Best Materials for Insulated Black Sectional Doors
Color Customization
Garage door colors are typically customized based on the RAL color system. Standard colors are available for faster delivery, while custom colors can be produced upon request. Slight color variations may occur due to different materials and surface finishes. Final color is subject to approved samples.
Supported Options
~RAL standard colors
~Customer-specified color codes or samples
Explore RAL Standard Color Options
Surface Texture Customization
Door panel surface textures can be customized to match different architectural styles, balancing durability with aesthetic appeal for modern, industrial, or classic buildings.
Available Textures
~Smooth
~Stucco / Orange Peel
~Wood Grain
~Embossed Texture
Vision Panels & Wicket Door Customization
To improve natural lighting, access efficiency, and user convenience, sectional overhead doors can be equipped with various vision panels and wicket doors, ideal for high-traffic areas and buildings requiring visibility.
Optional Configurations
~Vision panels: long strip, square, or custom sizes
~Infill materials: tempered glass or polycarbonate
~Wicket door: with or without threshold
Commercial Insulated Sandwich Doors
Professional Packaging
Reliable Global Logistics
Global Reach: With years of experience exporting to North America, Europe, the Middle East, and Southeast Asia, we provide full support for sea freight, including all necessary export documentation (CO, Form E, etc.) and real-time tracking.
