Cleanroom High-Speed Doors for GMP Compliance & ISO Airlocks
Maintaining differential pressure and cleanliness in an aseptic processing environment is a critical engineering challenge for pharmaceutical, semiconductor, and food processing facilities. ABX cleanroom high-speed doors are engineered for high-frequency internal access, effectively controlling cross-contamination and ensuring strict audit compliance. This article analyzes the engineering parameters of this product to help you optimize your facility’s cleanroom airlock integrity.
Ensuring Airlock Integrity and Cross-Contamination Control
In controlled environments, slow access equipment leads to severe air leakage and particulate ingress. As a specialized cleanroom high-speed door, this system delivers opening speeds up to 2.0m/s. This ultra-short cycle time minimizes air exposure, effectively maintaining the positive or negative differential pressure cascading between adjacent ISO-classified zones.
Traditional rigid doors generate mechanical friction and release particulates during frequent operation. Our cleanroom curtain utilizes a low-friction zipper track design, fundamentally eliminating the risk of particulate shedding. This engineering directly supports the facility’s strict requirements for cross-contamination control.
查阅我们关于制药厂气闸互锁逻辑控制的详细技术指南 / Internal Link Placeholder: Review our detailed technical guide on airlock interlocking logic control for pharmaceutical plants]
Quality Assurance & Global Compliance
Beyond technical engineering, ABX is committed to international standards of excellence. Our production facility and quality management systems are fully certified under ISO 9001 (Quality Management), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health and Safety). Furthermore, our door systems carry the CE (EU Standard) Attestation of Conformity, ensuring compliance with stringent European safety and machinery directives. These certifications underscore our dedication to sustainable manufacturing and reliable, long-term operational safety.
Compliance-Driven Solutions for Sensitive Industries

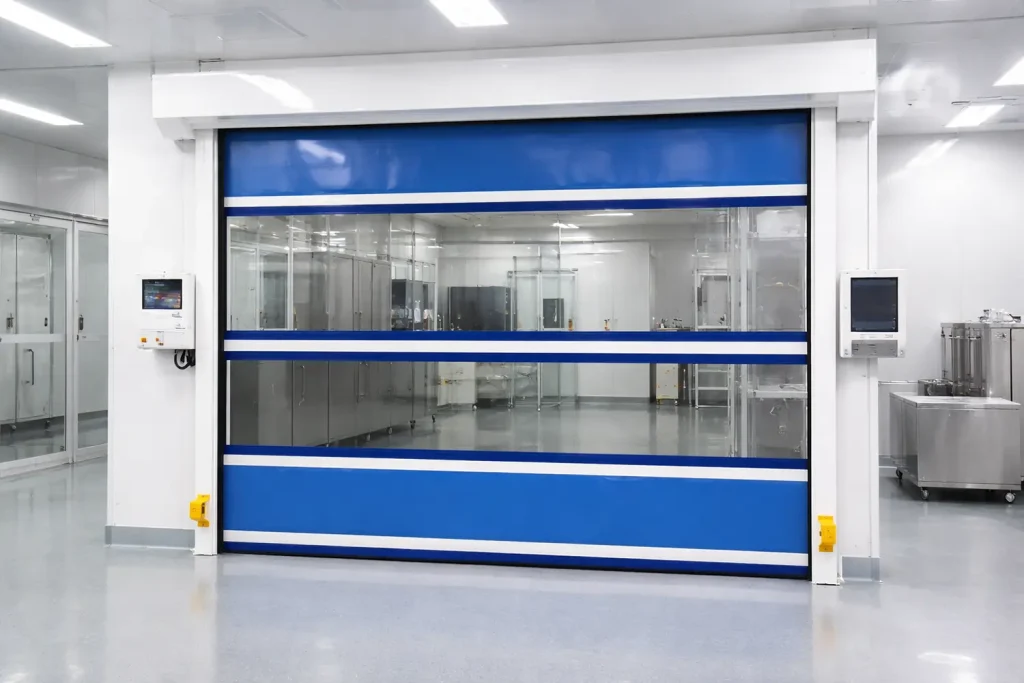

Pharmaceutical & Biotech
GMP Compliance: The door frame features seamless 304/316L stainless steel construction with a flush, crevice-free surface to prevent microbial harboring.
VHP Tolerance: Utilizes an FDA-approved, non-porous polyester curtain capable of withstanding frequent washdowns with aggressive chemical sterilants like Vaporized Hydrogen Peroxide (VHP), making it an ideal pharmaceutical door.
Aseptic Processing Environment: Sloped shrouds prevent dust and particulates from accumulating on top of the equipment.
Semiconductor & Microelectronics
ISO Airlock Compatibility: Specifically designed for ISO Class 5 to Class 8 cleanroom airlocks with minimized CFM leakage rates.
ESD Control: Offers specialized anti-static curtain options to prevent electrostatic discharge from causing irreversible damage to precision electronic components.
Food & Beverage Processing
HACCP & EHEDG Standards: Meets Hazard Analysis Critical Control Point (HACCP) requirements, with materials complying with European Hygienic Engineering & Design Group (EHEDG) washdown guidelines.
Self-Repairing Function: Features a crash-forgiving, self-repairing mechanism that automatically resets in the next cycle after an accidental forklift impact, ensuring production continuity.

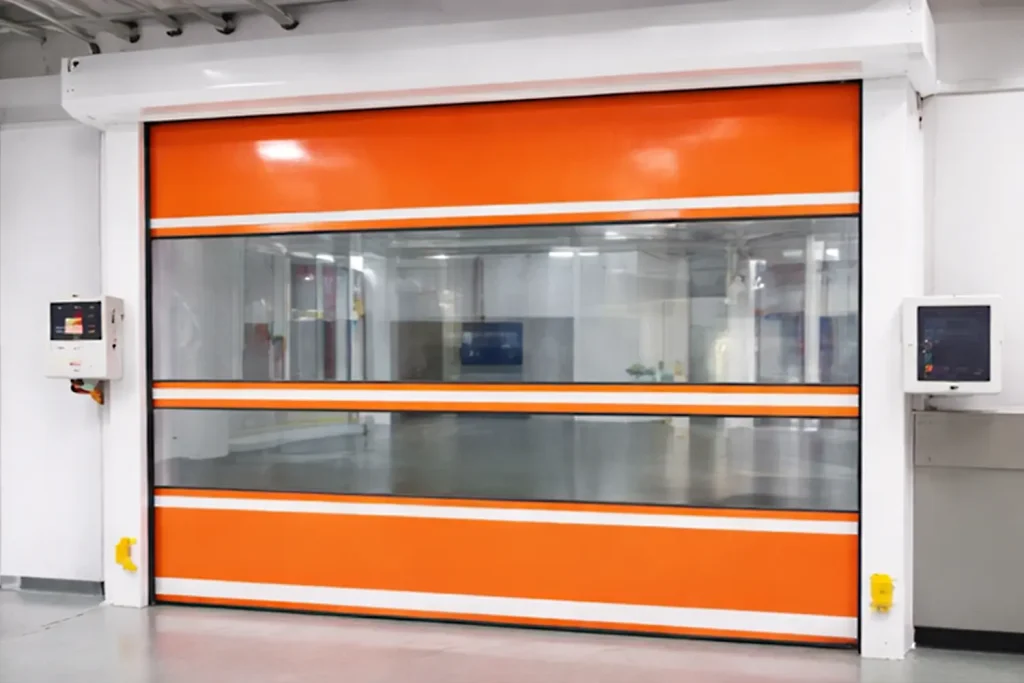

Critical Features and Interlocking Control Systems
The operation of advanced cleanrooms relies on precise logic control. This high-speed door is equipped with an industrial-grade PLC control box featuring standard dry contact interfaces for easy integration into Building Management Systems (BMS). It natively supports two-door or multi-door interlocking logic (i.e., Door B is forcibly locked until Door A is completely closed), physically severing air convection.
Regarding sealing technology, the door utilizes dynamic zipper sealing on the sides and an adaptive flexible weighted bottom edge. This design maintains exceptional airtightness under positive or negative pressure environments and achieves a seamless fit with self-leveling epoxy floors.
Key Engineering Specifications
Technical Parameter : Specification Value
Curtain Material : FDA-approved Non-porous PVC
Opening Speed : Up to 2.0 m/s (Adjustable )
Frame Construction : Flush 304/316L Stainless Steel
Cleanroom Class : ISO Class 5 – ISO Class 8
Interlock Capability : Native PLC Support
Building a Comprehensive Facility Access Defense
A rigorous contamination control strategy requires securing both the building perimeter and the core areas. Within our product matrix, heavy-duty modern garage doors (such as industrial sectional doors) defend against severe weather and manage exterior loading dock security. Meanwhile, our specialized cleanroom high-speed doors focus entirely on maintaining strict environmental parameters within internal ISO airlocks.
This dual-layer architecture of “perimeter defense + internal isolation” ensures full-process environmental integrity from raw material intake to the aseptic core. As a manufacturer with a profound engineering background, ABX provides EPC contractors with one-stop access solutions.
Conclusion
In the pharmaceutical, semiconductor, and food processing industries, the choice of access equipment directly dictates whether a facility can pass rigorous QC audits. Through seamless stainless steel frames, FDA-grade curtains, and smart interlocking systems, ABX cleanroom high-speed doors provide enterprises with reliable guarantees that meet GMP and ISO standards. It not only mitigates the risk of particulate contamination but also drastically optimizes cleanroom energy consumption.
Cleanroom High-Speed Doors for GMP Compliance & ISO Airlocks
Reliable Global Logistics
Global Reach: With years of experience exporting to North America, Europe, the Middle East, and Southeast Asia, we provide full support for sea freight, including all necessary export documentation (CO, Form E, etc.) and real-time tracking.
Hi, I’m Janice, the sales manager at ABX Doors. I’ve helped 500+ clients find the perfect garage door solution. How can I help you today?
To Industrial Sectional Doors
Need a heavier solution for your warehouse or factory? Explore our Industrial Sectional Doors, designed for extra-large openings and high-frequency operation.
To High-Speed Doors
Looking to improve logistics efficiency and temperature control? Check out our High-Speed Doors for rapid-access environments
To Dock Levelers/Seals
Complete your loading dock setup. We also offer heavy-duty Dock Levelers and Dock Seals for a seamless logistics experience.
How does the door system integrate with our existing Building Management System (BMS) for airlock interlocking?
Our cleanroom high-speed doors come standard with an industrial-grade PLC control box featuring dry contact interfaces, allowing seamless integration with your BMS. We support native two-door or multi-door interlocking logic, ensuring that Door B remains physically locked until Door A is fully closed, strictly maintaining your ISO airlock
Can the door curtain and frame withstand frequent Vaporized Hydrogen Peroxide (VHP) sterilization and chemical washdowns?
Yes. The door frame is constructed from flush, seamless 304 or 316L stainless steel, eliminating crevices where microbes can harbor. The curtain is made of FDA-approved, non-porous PVC/polyester material specifically engineered to tolerate aggressive chemical sterilants like VHP without degrading, ensuring full cGMP and EHEDG compliance.
What is the maximum differential pressure the door can handle while maintaining acceptable CFM leakage rates?
The door utilizes a dynamic zipper-edge sealing system and a flexible weighted bottom edge, allowing it to maintain strict airtightness under positive or negative pressure environments. It is designed to reliably operate and maintain extremely low CFM leakage rates at differential pressures up to 40-50 Pascals (Pa), making it ideal for ISO Class 5 to Class 8 cleanroom cascades.
How does the zipper track design prevent particulate shedding compared to traditional rigid doors?
Traditional rigid doors or brush-sealed roll-up doors generate mechanical friction during high-speed operation, which releases airborne particulates. Our zipper track design uses low-friction, self-lubricating UHMWPE (Ultra-High Molecular Weight Polyethylene) guides. This eliminates metal-to-metal or brush-to-curtain friction, effectively reducing particulate shedding to near zero and safeguarding your aseptic processing environment.
